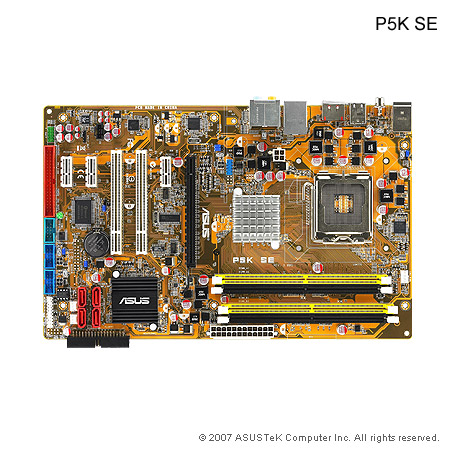

ASUS P5K SE Intel P35 Dual-channel 8-Channel audio Socket 775 ATX ---Demo---

Direktlänk: http://www.netvaruhuset.com/se/Art-1075.html?osCsid=07dceba6471d4f20bd77cfd551a2d832
Artikel: P5K SE
Lagerstatus:
Pris: 590.00
(472.00 exkl moms)
  Specifikationer     Kontakta mig     Tipsa en kompis     Recensioner

ASUS P5K SE Intel P35 Dual-channel 8-Channel audio Socket 775 ATX
utan tillbehör

ASUS Super Memspeed Technology Enhances Memory Speed
- Support Intel® next generation 45nm Multi-core CPU
- Intel LGA775 Platform
- Intel® P35 chipset
- Dual-channel DDR2 1066/800/667 MHz
- Gb LAN/ 8-channel HD Audio
- 12xUSB 2.0/ E-SATA
- All High-quality Conductive Polymer Capacitors


CPU support:
Intel Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4 Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm CPU
* Please update the latest BIOS to support Intel 45nm CPU

Chipset:
Intel P35
Intel ICH9
Intel Fast Memory Access Technology

Front Side Bus:
1600/1333/1066/800 MHz

Memory:
4 x DIMM, Max. 8 GB, DDR 1066*/800/667 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*The chipset officially supports the memory frequency up to DDR2 800MHz. Tuned by ASUS Super Memspeed Technology, this motherboard natively supports up to DDR2 1066MHz
Please refer to www.asus.com or user manual for Memory QVL.
**When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots:
1 x PCIe x16
3 x PCIe x1
2 x PCI

Storage:
Southbridge
4 xSATA 3 Gb/s ports
Marvell 88SE6111
1 xUltraDMA 133/100/66 for up to 2 PATA devices
1 xExternal SATA Gb/s port (SATA On the Go)

LAN: PCIe Gigabit LAN controller featuring AI NET 2

Audio:
Realtek ALC 883 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports at back I/O
ASUS Noise Filter
Support Jack-Sensing, Enumeration, Multi-streaming

USB: 12 USB 2.0 ports (6 ports at mid-board, 6ports at back panel)

ASUS Unique Features:
ASUS Quiet Thermal Solution
- ASUS AI Gear 2
- ASUS AI Nap
- ASUS Q-Fan 2

ASUS Crystal Sound
- ASUS Noise Filter
ASUS EZ DIY
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2

Other Features:
ASUS MyLogo 2
Overclocking Features
Intelligent overclocking tools
- ASUS AI Booster Utility
Precision Tweaker
- vDIMM: 17 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.0125V increment
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- DDR2 Memory tuning from 667MHz up to 1333MHz
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports:
1 x PS/2 Keyboard
1 x External SATA
1 x S/PDIF Out
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O

Internal I/O Connectors:
3 x USB connectors support additional 6 USB ports
1 x Floppy disk drive connector
1 x IDE connector
4 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24-pin Power connector
Front panel audio connector
COM connector
CD/AUX audio in
System Panel

BIOS:
8 Mb Flash ROM
DMI 2.0
AMI BIOS
PnP
WfM 2.0
SM BIOS 2.3
ACPI 2.0a
ASUS EZ Flash 2
ASUS CrashFree BIOS 3

Manageability:
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE

O/S Compatibility:
Windows Vista
Windows XP

Form Factor:
ATX Form Factor
12 inch x 7.6 inch ( 30.5 cm x 19.3 cm )

För mer information, vänligen uppsök produktens hemsida.
