ASUS P5N-E SLI nForce 650i SLI Socket 775 CORE2 ATX ---Demo---

Direct link: http://www.netvaruhuset.com/se/Art-1076.html?osCsid=bea28e92cced68ad194265ccfdbfc1c3
Article :P5N-E SLI
Stock :
Price :690.00
(552.00 excl VAT)
  Specifications     Contact me     Tell a friend     Reviews

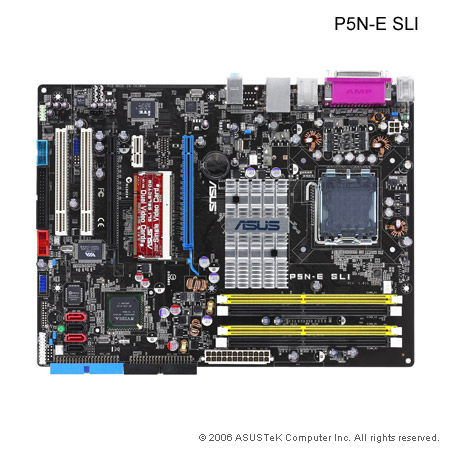

ASUS P5N-E SLI nForce 650i SLI Socket 775 CORE2 ATX
utan tillbehör.

The Best Cost Performance Ratio of Dual VGA Motherboard
- Support Intel® next generation 45nm Multi-core CPU
- Intel® Quad-Core
- Dual-channel DDR2 800/667/533
- Great performance and overclocking
- ASUS O.C. Profile
- ASUS Fanless Design
- 2 IEEE 1394a connector onboard (1 in back + 1 on board)
- 5 x SATA 3.0 Gb/s (including 1 x SATA On-the-Go)
- ASUS Q-Connector


CPU support:
Intel Socket 775 Core™2 Quad/Pentium® Extreme/Pentium® D/Pentium® 4/Celeron Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm CPU
Intel® Hyper-Threading Technology ready
* Please update the latest BIOS to support Intel 45nm CPU

Chipset:
NVIDIA nForce 650i SLI

Front Side Bus:
1333/1066/800/533 MHz

Memory:
4 x DIMM, Max. 8 GB, DDR2 800/667/533 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Expansion Slots:
2 x PCIe x16 , Single VGA mode: x16 (Default), SLI mode: x8, x8
1 x PCIe x1
2 x PCI 2.2

Storage:
Southbridge
2 xUltraDMA 133/100/66/33
4 xSATA 3 Gb/s ports Support RAID 0,1,0+1,5,JBOD
1 x External Serial ATA 3.0 Gb/s (SATA On-the-Go)

LAN:
Gigabit LAN featuring AI Net2 Marvell 88E1116 PHY

Audio:
Realtek ALC883 6 -Channel CODEC
Coaxial / Optical S/PDIF out ports
Support Jack-Sensing, Enumeration, Multi-streaming
IEEE 1394
Supports 2 x 1394a ports connector onboard (1 in back + 1 on board)
USB 8 USB 2.0 ports

Overclocking Features

Intelligent overclocking tools
- AI Overclocking (intelligent CPU frequency tuner)
Precision Tweaker
- vDIMM: 8 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 6.25mv increment
- vChipset 4-step voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 750MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 131MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
CPU Multiplier
Special Features

ASUS MyLogo 2
ASUS Q-Connector
ASUS Q-Fan 2
ASUS Fanless thermal solution (heatsink)
ASUS O.C. Profile
ASUS PC Probe2
ASUS Update

BIOS:
4 Mb Flash ROM
DMI 2.0
PnP
WfM 2.0
SM BIOS 2.3
Award BIOS
ASUS EZ Flash 2
ASUS CrashFree BIOS 2

Manageability:
WfM 2.0,DMI 2.0,WOL/WOR by PME,WOR by Ring,PXE,RPL,AI NET2

Internal I/O Connectors:
2 x USB connectors supports additional 4 USB ports
1 x Floppy disk drive connector
1 x IEEE 1394a connector
1 x CPU Fan connector
2 x Chassis Fan connector
1 x S/PDIF Out connector
1 x4-pin ATX 12V Power connector
24 Power connector
Front panel audio connector
COM connector
Chassis Intrusion connector
CD/AUX audio in
System Panel

Back Panel I/O Ports:
1 x Parallel
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x External SATA
1 x S/PDIF Out
1 x IEEE 1394a
1 x LAN(RJ45) port
4 x USB 2.0/1.1
6 -Channel Audio I/O

O/S Compatibility:
Windows Vista
Windows XP

ATX Form Factor
12 inch x 9 inch ( 30.5 cm x 22.9 cm )

For more information, please visit this products webpage.
