DFI Lanparty 790FX-M2R AMD 790FX Socket AM2 ATX

Direct link: http://www.netvaruhuset.com/se/Art-943.html?osCsid=00331c5d2e6510bb49794417fc510e88
Article :LP-UT-790FX-M2R
Stock :In Stock
Price :1990.00
(1592.00 excl VAT)
  Specifications     Contact me     Tell a friend     Reviews

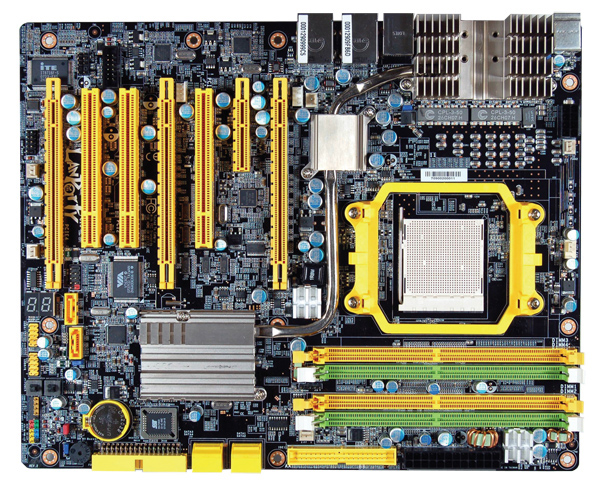

DFI Lanparty 790FX-M2R AMD 790FX Socket AM2 ATX

CPU
AMD® Phenom / Athlon 64 X2 / Athlon 64 FX / Athlon 64
Socket 940 AM2 65nm
HyperTransport 3.0 and 1.0

Chipset
AMD chipset
- Northbridge: AMD 790FX
- Southbridge: AMD SB600

Memory
Four 240-pin DDR2 DIMM sockets
Supports DDR2 667 and DDR2 800 DIMMs
Supports dual channel (128-bit wide) memory interface
Supports up to 8GB system memory
Supports unbuffered non-ECC x8 and x16 DIMMs

Expansion Slots
3 PCI Express (Gen 2) x16 slots
- 2-way or 4-way CrossFire at x16/x16/NC bandwidth
- 3-way CrossFire at x16/x8/x8 bandwidth
- 2-way CrossFire + Physics at x16/x8/x8 bandwidth
1 PCI Express x4 slot
3 PCI slots

BIOS
Award BIOS
CMOS Reloaded
CPU/DRAM overclocking
CPU/DRAM/Chipset overvoltage
8Mbit flash memory

Audio
Bernstein audio module
- Audio Codec options
a) Realtek ALC885 8-channel HD Audio Codec
- High-performance DACs with 106dB dynamic range (A-Weight), ADCs with 101dB dynamic range (A-Weight)
b) Realtek ALC888T 8-channel HD Audio Codec
- Supports VoIP connection using a standard phone
- High-performance DACs with 97dB SNR (A-Weighting), ADCs with 90dB SNR (A-Weighting)
- Center/subwoofer, rear R/L and side R/L jacks
- Line-in, line-out (front R/L) and mic-in jacks
- 2 coaxial RCA S/PDIF-in/out jacks
- 1 optical S/PDIF connector
- 1 CD-in connector
- 1 front audio connector

LAN
Marvell 88E8052 and Marvell 88E8053 PCIE Gigabit LAN controllers
Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards

IDE
One IDE connector allows connecting up to two UltraDMA 133Mbps hard drives

IEEE 1394
VIA VT6307
Supports two 100/200/400 Mb/sec ports

Serial ATA with RAID
AMD SB600
- Supports up to 4 SATA devices
- SATA speed up to 3Gb/s
- RAID 0, RAID 1 and RAID 0+1
Silicon Image SiI3132
- Supports up to 2 SATA devices
- SATA speed up to 3Gb/s
- RAID 0, RAID 1 and RAID 0+1

Rear Panel I/O Ports
1 mini-DIN-6 PS/2 mouse port
1 mini-DIN-6 PS/2 keyboard port
1 IEEE 1394 port
6 USB 2.0/1.1 ports
2 RJ45 LAN ports

I/O Connectors
2 connectors for 4 additional external USB 2.0 ports
1 connector for an external COM port
1 connector for an IEEE 1394 port
1 connector for the Bernstein audio module
1 front audio connector (on the Bernstein audio module)
1 CD-in connector (on the Bernstein audio module)
1 S/PDIF connector (on the Bernstein audio module)
1 IrDA connector
1 CIR connector
6 Serial ATA connectors
1 40-pin IDE connector
1 floppy connector
1 24-pin ATX power connector
1 8-pin 12V power connector
2 4-pin 5V/12V power connectors (FDD type)
1 front panel connector
6 fan connectors
1 diagnostic LED
EZ touch switches (power switch and reset switch)

Power Management
ACPI and OS Directed Power Management
ACPI STR (Suspend to RAM) function
Wake-On-PS/2 Keyboard/Mouse
Wake-On-USB Keyboard/Mouse
Wake-On-Ring
Wake-On-LAN
RTC timer to power-on the system
AC power failure recovery

Hardware Monitor
Monitors CPU/system/chipset temperature
Monitors 12V/5V/3.3V/Vcore/Vbat/5Vsb/Vdimm/Vchip voltages
Monitors the speed of the cooling fans
CPU Overheat Protection function monitors CPU temperature during system boot-up

PCB
ATX form factor
24.5cm (9.64") x 30.5cm (12")

For more information, please visit this products webpage.
