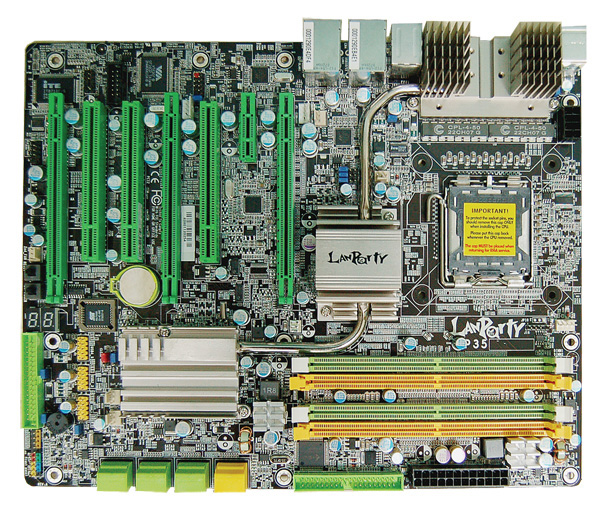

DFI Lanparty UT-P35-T2R IntelŪ P35 LGA 775 ATX CPU LGA 775 socket for: - IntelŪ CoreTM2 Quad, IntelŪ CoreTM2 Extreme, IntelŪ CoreTM2 Duo, IntelŪ PentiumŪ D or IntelŪ PentiumŪ 4 Supports Intel Enhanced Memory 64 Technology (EMT64T) Supports Enhanced Intel SpeedStep Technology (EIST) Supports Intel Hyper-Threading Technology Supports 1333*/1066/800MHz system bus speed *Available only on CPUs that support 1333MHz FSB Chipset IntelŪ chipset - Northbridge: IntelŪ P35 Express chipset (with IntelŪ Fast Memory Access technology) - Southbridge: IntelŪ ICH9R Memory Four 240-pin DDR2 DIMM sockets Supports DDR2 667/800 MHz Delivers up to 12.8Gb/s bandwidth Supports dual channel (128-bit wide) memory interface Supports up to 8GB system memory Supports unbuffered x8 and x16 DIMMs Expansion Slots 3 PCI Express x16 slots (PCIE1 at x16, PCIE3 at x4 or x1 and PCIE4 at x1) 1 PCI Express x1 slot 3 PCI slots BIOS Award BIOS 8Mbit flash memory Audio Bernstein audio module - Realtek ALC885 8-channel High Definition Audio CODEC - Center/subwoofer, rear R/L and side R/L jacks - Line-in, line-out (front R/L) and mic-in jacks - 2 coaxial RCA S/PDIF-in/out jacks - 1 optical S/PDIF connector - 1 CD-in connector - 1 front audio connector DAC SNR/ADC SNR of 106dB/101dB Full-rate lossless content protection technology LAN Marvell 88E8052 and Marvell 88E8053 PCIE Gigabit LAN controllers Fully compliant to IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX) and 802.3ab (1000BASE-T) standards IEEE 1394 VIA VT6307 Supports two 100/200/400 Mb/sec ports Hardware Monitor Monitors CPU/system/Northbridge temperature and overheat alarm Monitors Vcore/Vdimm/Vnb/VCC5/12V/V5sb/Vbat voltages Monitors the speed of the cooling fans CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shutdown upon system overheat Storage Intel ICH9R chip - Intel Matrix Storage technology - Supports up to 6 SATA devices - SATA speed up to 3Gb/s - RAID 0, RAID 1, RAID 0+1 and RAID 5 JMicron JMB363 PCI Express to SATA and PATA host controller - Supports up to 2 UltraDMA 100Mbps IDE devices - Supports 2 SATA devices - SATA speed up to 3Gb/s - RAID 0 and RAID 1 I/O Connectors 3 connectors for 6 additional external USB 2.0 ports 1 connector for an external COM port 1 connector for an IEEE 1394 port 1 connector for the Bernstein audio module 1 front audio connector (on the Bernstein audio module) 1 CD-in connector (on the Bernstein audio module) 1 S/PDIF connector (on the Bernstein audio module) 1 IrDA connector 1 CIR connector 8 Serial ATA connectors 1 40-pin IDE connector 1 floppy connector 1 24-pin ATX power connector 1 8-pin 12V power connector 2 4-pin 5V/12V power connectors (FDD type) 1 front panel connector 6 fan connectors 1 diagnostic LED EZ touch switches (power switch and reset switch) Rear Panel I/O Ports 1 mini-DIN-6 PS/2 mouse port 1 mini-DIN-6 PS/2 keyboard port 1 IEEE 1394 port 6 USB 2.0/1.1 ports 2 RJ45 LAN ports Power Management ACPI and OS Directed Power Management ACPI STR (Suspend to RAM) function Wake-On-PS/2 Keyboard/Mouse Wake-On-USB Keyboard/Mouse Wake-On-LAN and Wake-On-Ring RTC timer to power-on the system AC power failure recovery PCB 6 layers, ATX form factor 24.4cm (9.6") x 30.5cm (12")
