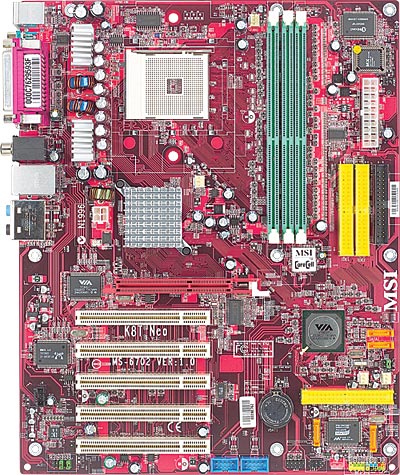

Microstar K8T Neo-FIS2R VIA K8T800 Firewire, GbLan, D-bracket 2 Socket 754 ATX

Direktlänk: http://www.netvaruhuset.com/se/Art-1100.html?osCsid=712e4b2cdeaa6b700c2d196f8ebbe39b
Artikel: K8T Neo-FIS2R
Lagerstatus: Finns i lager
Pris: 995.00
(796.00 exkl moms)
  Specifikationer     Kontakta mig     Tipsa en kompis     Recensioner

Microstar K8T Neo-FIS2R VIA K8T800 Firewire, GbLan, D-bracket 2 Socket 754 ATX


• VIA K8T800 + VIA VT8237
• Integrated Ethernet 10/100/1000 LAN
• IEEE1394 FireWire
• Serial ATA RAID 0, 1 (VIA VT8237)
• Serial ATA RAID 0, 1, 0+1 (Promise)
• 4X/8X AGP, 6 channel Audio
• Live Update 3
• D-bracket 2
• MSI Corecell Chip, MSI Corecenter, DOT


CPU • Supports 64-bit AMD® Athlon64 processor (Socket 754)

Chipset
• VIA® K8T800 Chipset
- HyperTransport connection to AMD Next Generation of CPU
- 8 or 16 bit control/ address. data transfer both directions
- 800/600/400/200MHz "Double Data Rate" operation both direction
- AGP v3.0 compliant with 8X transfer mode
• VIA® VT8237 Chipset
- Ultra DMA 66/100/133 master mode EIDE controller
- Integrated dual channel native Serial ATA/RAID controller that will supply 150MB/s and support RAID 0, RAID 1
- ACPI & PC2001 compliant enhanced power management
- Supports 8 USB2.0 ports. (Rear x4/ Front x4)

Main Memory
• Supports three 184-pin DDR SDRAMs up to 2GB memory size
• Supports DDR400*/DDR333/DDR266 DDR SDRAM (*Refer to MSI recommended modules)
Note: PC3200 (DDR400) maximum 4 banks (2 double-sided) only

SLOTS
• One AGP (Accelerated Graphics Port) 1.5V 4x/8x slot
• Five PCI 2.2 32-bit Master PCI Bus slots. (support 3.3v / 5v PCI bus interface)

BIOS
• The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

On-Board IDE
• An IDE controller on the VT8237 chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 66/100/133 operation modes. It can connect 4 Ultra ATA drives.
• Serial ATA/150 controller integrated in VT8237
- Up to 150MB/s transfer speed
- Can connect up to 2 Serial ATA drives
- Support RAID 0, RAID 1

Promise 20378 Onboard
• Supports ultra ATA, Serial ATA, Ultra ATA RAID 0 or 1, Serial ATA RAID 0 or 1, Ultra/ Serial ATA RAID 0+1
• Connect up to 2 Serial ATA devices and 2 Ultra ATA 133 devices

IEEE1394
• VIA VT6307 IEEE1394 controller
• Provides onboard one 6-pins port and one 4-pins port
• Transfer rate up to 400Mbps

Audio
• 6 Channel software audio codec Realtek ALC655

För mer information, vänligen uppsök produktens hemsida.
