MSI Media Live HTPC Barebone, Slot-in optical drive, HDMI, Scart, VFD, WLAN, AM2, Silver

Direct link:
Stock :
Price :3199.00
(2559.20 excl VAT)
  Specifications     Contact me     Tell a friend     Reviews

MSI Media Live HTPC Barebone, Slot-in optical drive, HDMI, Scart, VFD, WLAN, Remote Control, AM2, Silver


7-in-1 Flash Card Reader
The Card reader supports CF/SD/MS/MS-Pro/SM/MMC/MD memory card, which helps user to import digital photos conveniently into their system.

Suction Type Optical Driver
The suction-type optical driver provides an extremely easy and convenient way of inserting or ejecting the disk.

Fancy LED
The fancy LED is a status-displaying panel that easily shows the status details of the DVD, music, pictures, TV programs and messages.

Full set of connecting ports
It comes with full set of connecting ports including USB and IEEE 1394 ports, as well as a DV output, S-video port, and multi-channel audio output, which support the connection to most of the consumer electronics such as TVs and stereo sets.

MB Specification

Processor Support: Support AMDR Athlon 64 X2, Athlon 64 and Sempron in the Socket AM2 package.
Supported FSB: HyperTransport supporting speed up to 1GHz (2000MT/s)

North Bridge: nVidia® C51PVG Chipset
South Bridge: nVidia® MCP51 Chipset

Supports DDR2 400/533/667/800 SDRAM (4GB Max)
4 DDR2 DIMMs (240-pin, non-ECC / 1.8V)

Supports 10/100/1000 Fast Ethernet LAN by Vitesse® VSC8601

IEEE 1394
Chip integrated by VIA® VT 6308P
Transfer rate is up to 400Mb

Chip integrated by Realtek® ALC883
Flexible 8-channel high definition audio with jack sensing
Compliant with Azalia V1.0 Spec

Supports 2 IDE ports by nVidia® MCP51
Supports Ultra DMA 66/100/133 mode
Supports PIO, Bus Master operation mode

Supports 4 SATA2 ports by nVidia® MCP51(2 SATA2 ports only for Media Live)
Supports storage and data transfers at up to 300 MB/s
Support RAID 0, 1 or JBOD

1 floppy port
Supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

Connectors Back Panel
3 Component Video Out (RGB)
8 Audio RCA Out (for 8-channel audio support)
1 Digital Video Out (HDMI)
4 USB 2.0 Ports
1 IEEE 1394 Port
3 AV Out
1 S-Video Out
1 Graphics Card Out (D-Sub)
1 LAN Jack (RJ45)
1 Digital Audio Out (Coaxial)
1 Digital Audio Out (Optical)

Connectors Front Panel
1 Headphone (Green)
1 Microphone (Pink)
1 IEEE 1394 Port
2 USB 2.0 Ports
4 Slots 3.5" Memory Card Reader

On-Board Pinheaders
2 USB 2.0 Pinheaders
1 CD-In Pinheader
1 TV-Out Pinheader
2 SPDIF-Out/In Pinheaders
1 Graphics Card Pinheader

VFD VFD (integrated Bluetooth v2.0+EDR and Wi-Fi/IEEE802.11b+g, Optional)

1 PCI slot
Supports 3.3V / 5V PCI bus Interface

Form Factor
Standard Micro-ATX (24.4 cm X 24.4 cm)

8 mounting holes

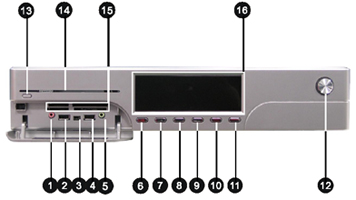

Front View:

1. Microphone (Pink) 9. Rew Button
2. USB 2.0 Port 10. Fwd Button
3. IEEE 1394 Port 11 Skip Button
4. USB 2.0 Port 12 On / Standby
5. Headphone (Green) 13 Eject Button (for ODD)
6. Stop Button 14 Slim Slot-In Optical Disk Drive
7. Play Button 15 Memory Card Reader Drive
8. Replay Button 16 Integrated VFD Module

Back View:

1. Ventilation Hole 9. AV Out
2. Power Switch 10. S-Video Out
3. Power Jack (AC In) 11. SCART Out
4. Component Video Out 12. Graphics Card Out (D-Sub)
5. Audio RCA Out 13. LAN Jack (RJ45)
6. Digital Video Out (HDMI) 14. PCI Expansion Slot
7. USB 2.0 Ports 15. Digital Audio Out (Coaxial)
8. IEEE 1394 Port 16. Digital Audio Out (Optical)

For more information, please visit this products webpage.
