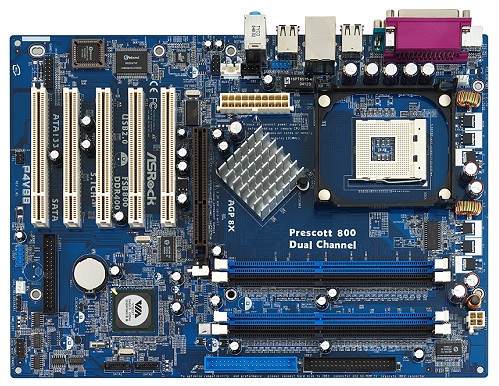

Included mainboard and I/O Shield
Socket 478 for Intel® P4 processor
VIA® PT880 chipset
Supports FSB800MHz processor, Prescott Ready and H-T Technology
Supports DDR400 and Dual Channel Technology
Hybrid Booster - ASRock safe overclocking
SerialATA 1.5Gb/s, RAID 0,1,JBOD, SATA HDD_Hotplug
AGP8X, 5.1-Ch Audio, 10/100 Ethernet LAN
ASRock I/O Plus: 6 ready-to-use USB2.0 ports
- Socket 478 for Intel® Pentium 4/Celeron processor
- FSB 800/533/400 MHz
- Supports Hyper-Threading Technology
- Prescott support
Chipset:
- Northbridge: VIA® PT880
- Southebridge: VIA® 8237
Memory:
- Dual Channel DDR memory technology
- Supports DDR400/333/266 non-ECC, un-buffered memory
- DIMM slots: 4
- Max. capacity of system memory: 4GB*
*Due to the chipset limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP.
BIOS:
- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP
Audio, Video and Networking
Audio:
- CMedia CMI9761 6 channel AC'97 audio codec
LAN:
- VIA® 6103 10/100 Ethernet LAN PHY
- 802.3u, WOL supported
Expansion / Connectivity Slots:
- 1 x AGP8X/4X slot, 1.5V
- 5 x PCI slots (PCI 2.2 compliance)
Connector:
- 2 x SeialATA 1.5Gb/s connectors supports RAID,0,1,JBOD, SATA HDD_Hotplug
- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)
- 1 x Floppy connector
- CPU/Chassis FAN connectors
- 20 pin ATX power connector
- IDE LED connector
- CD/AUX audio in header
- Front panel audio connector
- 2 x USB 2.0 port pin header
- 1 x Game/MIDI port pin header
Rear Panel I/O:
ASRock I/O Plus
- 6 x USB2.0 ports
- 1 x RJ45 LAN port
- 1 x Serial port (COM1)
- 1 x PS2 Keyboard connector
- 1 x PS2 Mouse connectors
- 1 x Parallel port (LPT1)
- 1 x Audio port ( Line In/Out, Mic In)
Other Features / Miscellaneous
Hybrid Booster:
- CPU Frequency Stepless control
- ASRock U-COP
- Boot Failure Guard (B.F.G)
Hardware Monitor:
- CPU Temperature Sensing
- Motherboard Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor:
- ATX, 305mm x 218mm
OS support:
- Microsoft® Windows® 98SE/ME/2000/XP compliant
Certifications:
- FCC, CE, MS WHQL
|
