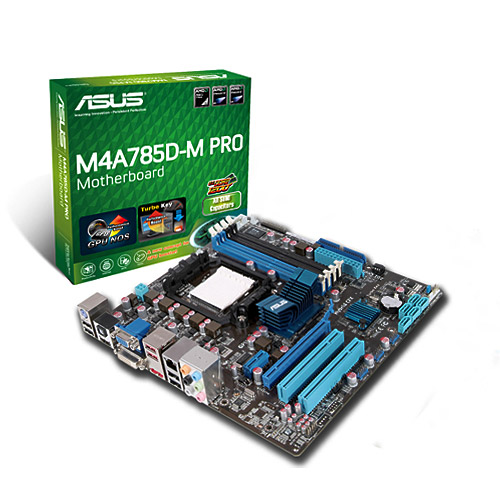

Asus M4A785D-M PRO AMD785G AM3 DDR2 HDMI m-ATX
Direct link: http://www.netvaruhuset.com/se/Art-1168.html
Click to enlarge
Article :
M4A785D-M PRO
Stock :
Price :
895.00
(716.00 excl VAT)
  Specifications
  Contact me
  Tell a friend
  Reviews
Asus M4A785D-M PRO AMD785G AM3 DDR2 HDMI m-ATX
M4A785D-M PRO
A new concept for GPU booster
* GPU NOS
* All Solid Capacitors
* Stack Cool 3
* HDMI/DVI/D-Sub Support
* DirectX 10.1 Support
Specifications
CPU AMD AM3/AM2+/AM2 ;Phenom™II /Athlon™II /Phenom™ / Athlon™ /Sempron™ Processors
Support 45nm CPU
AMD Cool 'n' Quiet™ 2.0 Technology (by CPU type)
Support CPU up to 125W
*Refer to www.asus.com for the AMD CPU support list
Chipset AMD 785G/SB710
System Bus Up to 5200 MT/s ; HyperTransport™ 3.0 interface for AM2+/AM3 CPU
2000 / 1600 MT/s for AM2 CPU
Memory 4 x DIMM, Max. 16 GB, DDR2 1200(O.C.)/1066*/800/667 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
*We recommend that you install the DDR2 1200 memory modules on the blue slots for better performance.
*Due to AMD CPU limitation, DDR2 1200(O.C.)/1066 is supported by AM3/AM2+ CPU for one DIMM per channel only.
*Refer to www.asus.com for the memory QVL (Qualified Vendors List)
Expansion Slots 1 x PCIe x16
1 x PCIe x1
2 x PCI
VGA Integrated ATI Radeon HD4200
Max. shared memory: 512 MB
Supports DVI-D with HDCP compliant with max. resolution 2560x1600 (@ 60Hz dual-link)
Supports HDMI™ Technology with max. resolution up to 1920 x 1200 (1080P)@60Hz
Supports RGB with max. resolution 2560 x 1440 (@75Hz)
Hybrid CrossFireX™ Support (For Windows Vista only)
Supports Microsoft® DirectX 10.1, OpenGL 2.0, Shader Model 4.1
Hardware Decode Acceleration for H.264,VC-1, and MPEG-2
Dual VGA output support:
RGB & DVI
RGB & HDMI
*Refer to www.amd.com for the Hybrid CrossFireX selected GPUs.
*To playback the HD-DVD and Blu ray Disc we recommended system configuration above Graphic shared memory 256MB/Dual-Core CPU minimum/Minimum 1GB memory of Dual-channel DDR2 667 or Single -chanel DDR2 800.
Storage Southbridge
1 xUltraDMA 133/100/66 for up to 2 PATA devices
5 xSATA 3 Gb/s ports Support RAID 0,1,10,JBOD
1 x External SATA 3Gb/s port supporting RAID 0, RAID 1,RAID 10 and JBOD
LAN PCIe Gigabit LAN
Audio VT1708S High Definition Audio 8-Channel CODEC
- Optical S/PDIF out port at back I/O
- Support Jack Detection,Multi-streaming,Single SPDIF Out,Anti-pop Function and Front Panel Retasking(HD only)
USB 12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)
ASUS Unique Features ASUS 4+1 Phase Power Design
EPU- 4 Engine
Express Gate
Turbo Key
ASUS CrashFree BIOS 3
ASUS EZ Flash 2
ASUS MyLogo 2
ASUS Q-Fan
ASUS AI NET2
Overclocking Features Intelligent overclocking tools
- GPU NOS (*GPU NOS does not take effect under Hybrid CrossFireX mode.)
- Turbo Key
Precision Tweaker 2
- vDIMM: 47 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 6.25mv increment
- vChipset 48-step voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 550MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Back Panel I/O Ports 1 x PS/2 Keyboard/Mouse Combo port
1 x DVI
1 x D-Sub
1 x HDMI
1 x External SATA
1 x S/PDIF Out (Optical)
1 x LAN(RJ45) port
6 x USB 2.0/1.1
8 -Channel Audio I/O
Internal I/O Connectors 3 x USB connectors supports additional 6 USB 2.0 ports
1 x IDE connector
5 x SATA connectors
1 x CPU /Chassis/Power Fan connector
1 x High Definition Front panel audio connector
1 x S/PDIF Out connector
1 x COM connector
1 x Printer port
1 x System Panel connector
1 x 24-pin ATX Power connector
1 x 4-pin ATX +12V Power connector
BIOS 8 Mb Flash ROM AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.5, ACPI V2.0a
Accessories User's manual
1 x I/O Shield
1 x UltraDMA 133/100/66 cable
2 x SATA cable(s)
Support Disc Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update
Form Factor uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
For more information, please visit this products
webpage
.
